詳細信息

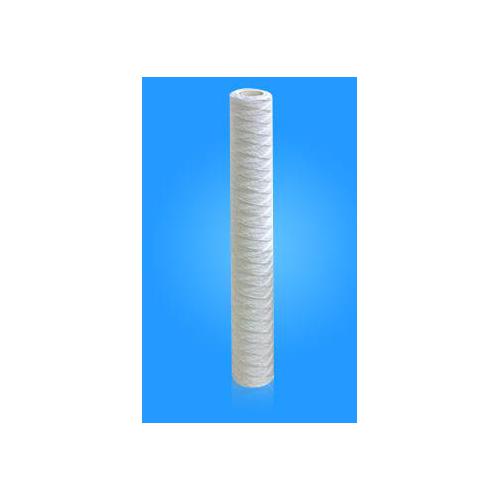

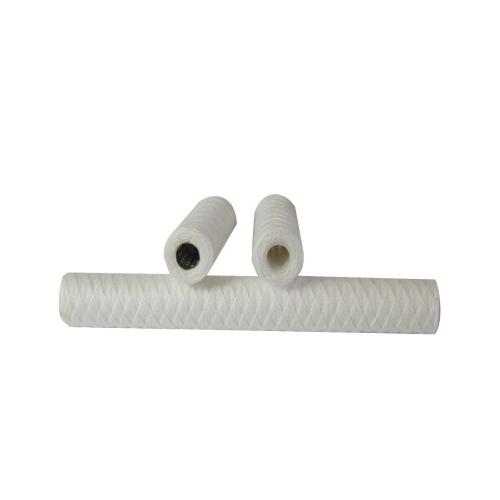

XPP型線繞濾芯(XPP THREAD-WINDING FILTER CARTRIDGE )

XPP型線繞濾芯是由紡織纖維粗紗精密纏繞在多孔骨架上而成,纏繞時控制濾芯纏繞密度即能制成不同過濾精度的濾芯。濾芯過濾孔徑外大內小,具有優良的深層過濾效果。
XPP Thread-winding filter cartridge consists of multi-hole frames wound closely with textile fibres.Diverse kinds of filtering precision can berealized by controlling the winding density.As the outer bore diameter is larger than the inner one,the filter cartridges have a good deep-level filtering capability.
主要技術參數(TECHNICAL DATA)
◆精度(Precision):1μm、5μm、10μm、20μm、30μm、50μm、100μm、200μm等
◆長度(Length):5″、10″、20″、30″、40″
◆直徑(Diameter):外徑(Outer diameter):φ63.5mm±1mm
內徑(Inner diameter):φ30mm φ28mm
◆濾芯接口:平面型、222型
◆***高工作溫度(Max temperature):
聚丙烯骨架(for polypropylene) 60℃
不銹鋼骨架 脫脂棉 (for stainless steel frame,cotton fibre) 120℃
◆***高承壓(Max pressure):0.4Mpa
◆水流量:>500L/H(10″濾芯)
型號規格:
XPP-10″-5μm
應用領域(APPLICATION)
主要用于食品飲料工業、電子工業、制藥工業、石油及化學工業等部門的工藝用水及溶液凈化。
Mainly used for the purification of process water and solutions in food and drinks,electronic,pharmaceutical,petroleum and chemical industries.
